Keywords: PTFE Fiberglass, PTFE Adhesive Tapes

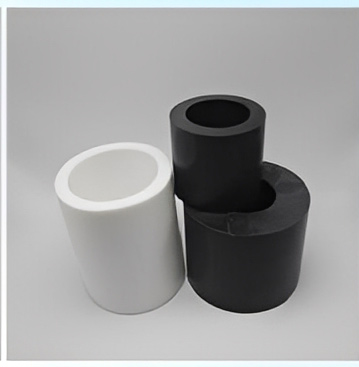

PTFE tube can be divided into extrusion tube and moulded.PTFE Tube is of good sintered ptfe blank in the mould preheating to sintering temperature,pressure,cooling and hot pressing,generally larger diameter tolerance,mainly used for cutting or secondary processing small batch gasket,insulation parts,seals and other products.PTFE tube in the known plastic has the best chemical corrosion resistance and dielectric properties.
| ltem name | Unit | Result |
| Density | g/cm³ | 2.10-2.40 |
| Tensile strength | MPa | 15 |
| Ulimate elongation | % | 150 |
| Operating temperature | ℃ | -180～+260 |
| Technology | Dia. (mm) | Length |

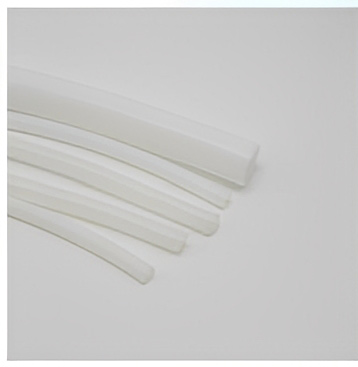

| Paste Hose | 1mm~32mm | >300m |
| Extruded Tube | 16mm~400mm | >4200mm |
| Molded Tube | 25mm~420mm | >300mm |
| Filled Bronze Molded | 25mm~350mm | >300mm |
| Filled Graphite Molded | 25mm~350mm | >300mm |
| Filled Fiber Glass Molded | 25mm~350mm | >300mm |
| ID*OD*Length | ID*OD*Length | ID*OD*Length | ID*OD*Length |
| 2*4*100m | 13*15*100m | 19*21*100m | 25*28*100m |
| 4*6*100m | 14*16*100m | 19*22*100m | 25*29*100m |
| 6*8*100m | 15*17*100m | 20*22*100m | 32*36*100m |
| 8*10*100m | 16*18*100m | 22*24*100m | 38*42*100m |
| 10*12*100m | 16*19*100m | 22*25*100m | |
| 12*14*100m | 18*20*100m | 23*25*100m |
| ①20×φ10中54×34 | 中80×φ15Φ80×φ20Φ80×φ25Φ80×φ30 φ80×φ35φ80×φ40φ80×φ50 Φ80×φ55φ80×φ55 Φ80×φ60Φ80×φ65Φ82×φ60Φ85×φ25Φ85×φ30 φ85×φ35 Φ85×φ40 φ85×Φ45 φ85×φ50 φ85×φ55 φ85×φ60 Φ85×Φ65 φ85×φ70φ90×φ30 φ90×φ35 φ90×φ40 φ90×φ45 φ90×φ50 φ90×φ55 φ90×φ60 φ90×φ65 φ90×φ70 φ90×φ75 φ95×φ20 φ95×φ25φ95×Φ35 φ95×45 | φ95×φ50 φ95×φ55 φ95×Φ60 φ95×Φ65φ95×φ75 φ95×φ78 φ95×Φ80 φ100×φ20φ100×φ30φ100×φ35 φ100×φ40φ100×φ50 Φ100×φ55 φ100×φ60 φ100×φ65 φ100×φ70 φ100×φ75中100×φ80 φ100×φ85 φ100×φ88 φ105×φ40 φ105×φ45Φ105×Φ48φ105×φ55φ105×φ60中105×φ70 φ105×φ75 Φ105×φ78 φ105×φ88 φ106×φ76 φ110×φ30 Φ110×φ35 φ110×φ40 φ110×φ45 Φ110×φ50 φ110×φ55 | φ110×φ60 φ110×φ65 φ110×φ70 φ110×φ75 φ110×φ80 φ110×φ85 φ110×φ88 φ110×φ90Φ110×φ95Φ110×φ100 φ115×φ35 Φ115×φ50 φ115×φ60 φ115×φ78 φ115×φ85 φ115×φ88 φ118×Φ89 φ120×φ35 φ120×φ40φ120×φ50Φ120×φ60φ120×φ70 Φ120×φ75 φ120×φ80 φ120×φ85 φ120×φ88Φ120×φ90 φ120×Φ100 φ120×φ105 φ125×φ45 φ125×φ50Φ125×φ60φ125×φ70 φ125×φ75 φ125×Φ80 φ125×φ85 | |
| φ25×φ15 φ30×φ10 φ30×Φ15 φ30×φ16 φ30×18φ30×φ25 φ35×10φ35×φ15 φ35×Φ18 φ35×φ20 φ35×φ25 φ38×φ18 φ38×φ25 φ40×φ10 φ40×15φ40×φ18 φ40×φ20 Φ42×φ22φ40×φ25 φ47×φ27 φ40×φ28 φ45×φ15 φ45×φ18 φ45×φ20 φ45×φ25 φ45×φ30 φ45×φ35 φ46×φ20 φ46×φ25φ50×φ15 φ50×φ20 φ50×φ25 φ50×φ30 φ50×φ35 φ50×φ40 | φ55×φ20 φ55×φ25 φ55×φ30 φ55×φ35φ55×φ45φ60×φ15 φ60×φ18 φ60×φ20 φ60×φ25 φ60×φ30 φ60×φ35 φ60×φ40 φ64×φ42 中65×Φ20 φ65×φ25 φ65×φ30 φ65×φ35 φ65×φ40 φ65×φ45 Φ65×φ50φ70×φ20 φ70×φ25 φ70×30φ70×φ35 φ70×φ40 φ70×φ45 φ70×φ48 φ70×φ50 φ70×φ55 φ75×φ30 φ75×φ35 φ75×φ40 φ75×φ50 φ75×φ55 φ75×φ60 | |||
AT-1620 Extruded PTFE Tubing
| ODXID(mm) | |||
| 5*12*4000 | 27*34*4000 | 51*91*4000 | 110*140*4000 |
| 5*15*4000 | 28*35*4000 | 55*59*4000 | 110*160*4000 |
| 5*16*4000 | 29*32*4000 | 55*65*4000 | 115*135*4000 |
| 8*12*4000 | 30*41*4000 | 55*75*4000 | 115*145*4000 |
| 8*18*4000 | 30*50*4000 | 59*100*4000 | 115*160*4000 |
| 8*21*4000 | 30*60*4000 | 60*70*4000 | 130*145*4000 |
| 10*14*4000 | 32*38*4000 | 60*75*4000 | 143*164*4000 |
| 10*30*4000 | 32*45*4000 | 60*80*4000 | 145*190*4000 |
| 12*16*4000 | 32*57*4000 | 60*90*4000 | 150*162*4000 |
| 13*22*4000 | 32*66*4000 | 61*65*4000 | 160*175*4000 |
| 13*24*4000 | 33*40*4000 | 65*69*4000 | 160*210*4000 |
| 13*25*4000 | 33*77*4000 | 65*75*4000 | 165*185*4000 |
| 13*27*4000 | 35*38*4000 | 65*78*4000 | 170*200*4000 |
| 14*18*4000 | 35*50*4000 | 65*80*4000 | 180*200*4000 |
| 14*20*4000 | 36*40*4000 | 70*85*4000 | 200*220*4000 |
| 16*22*4000 | 36*42*4000 | 70*90*4000 | 200*245*4000 |
| 16*28*4000 | 36*46*4000 | 70*100*4000 | 220*260*4000 |
| 16*33*4000 | 40*44*4000 | 70*110*4000 | 220*270*4000 |
| 17*30*4000 | 40*50*4000 | 75*85*4000 | 225*250*4000 |
| 20*24*4000 | 40*55*4000 | 75*90*4000 | 240*260*4000 |
| 20*26*4000 | 40*60*4000 | 78*121*4000 | 310*330*4000 |
| 20*28*4000 | 40*70*4000 | 80*90*4000 | 375*400*4000 |
| 20*30*4000 | 40*80*4000 | 80*95*4000 | |
| 20*40*4000 | 43*46*4000 | 80*100*4000 | |
| 20*50*4000 | 43*47*4000 | 85*95*4000 | |
| 20*60*4000 | 45*55*4000 | 85*100*4000 | |
| 22*28*4000 | 45*65*4000 | 90*105*4000 | |
| 22*32*4000 | 45*87*4000 | 90*118*4000 | |
| 22*38*4000 | 48*63*4000 | 90*128*4000 | |
| 22*42*4000 | 50*56*4000 | 90*138*4000 | |
| 25*36*4000 | 50*60*4000 | 95*105*4000 | |
| 25*38*4000 | 50*62*4000 | 95*110*4000 | |
| 25*40*4000 | 50*70*4000 | 100*116*4000 | |
| 25*45*4000 | 50*80*4000 | 100*125*4000 | |
| 25*50*4000 | 50*100*4000 | 100*140*4000 | |
| 26*31*4000 | 51*57*4000 | 105*120*4000 | |
