PTFE Gasket-1800

PTFE Gasket-1800

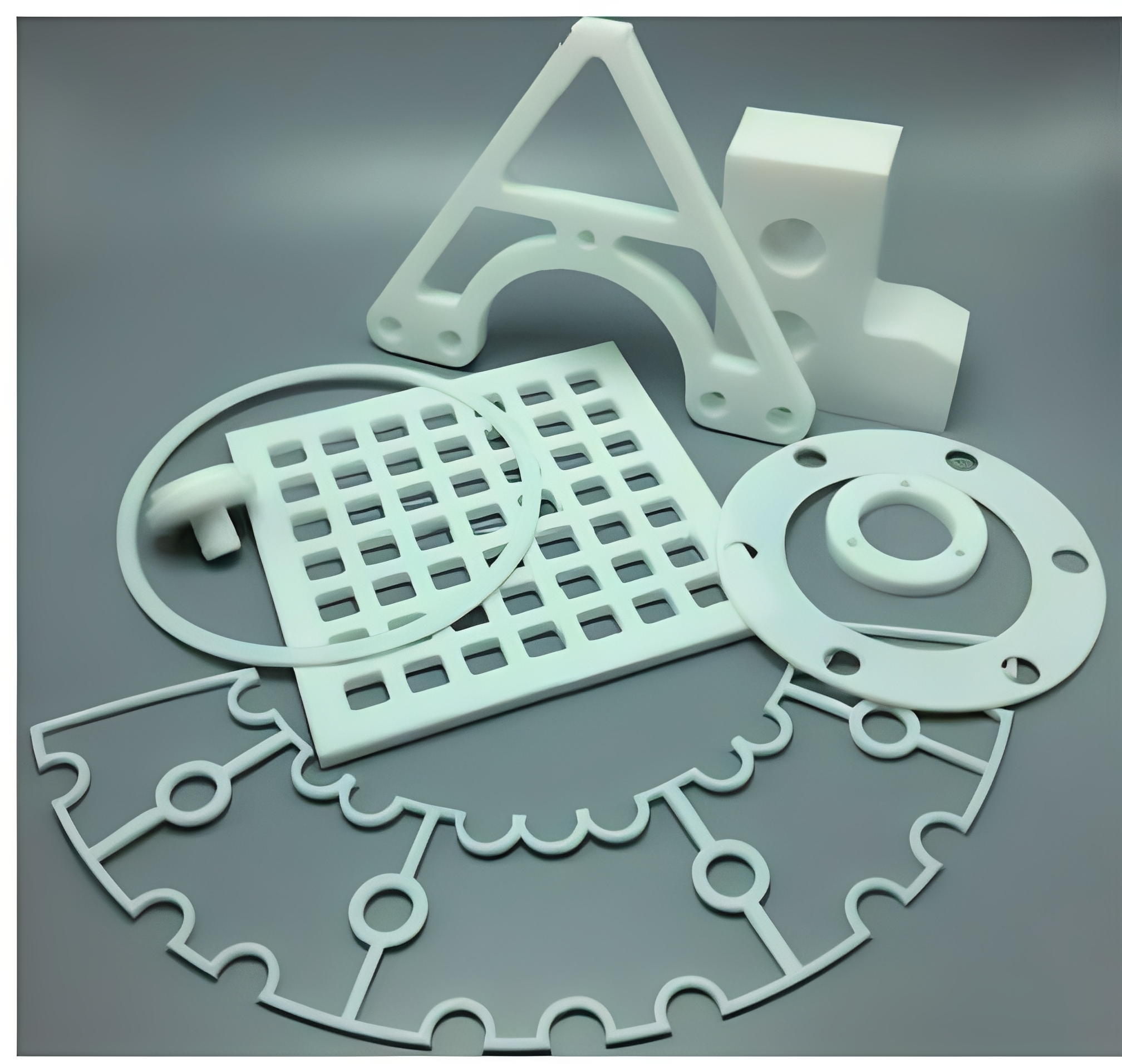

Pure  PTFE  Gasket  is  made  by  cutting  and  moldeding,into  flat  shape,V  shape  gasket  and  valve  annulus.

 has   100%PTFE   structure.It   can   be   bear   the   most   bitter   chemical   medium,and   has   good

anti-creepin performance.conforms   to    both    FDA,MSDS,Rosh6,SGS.


Inquire Now
Product Details:
ltem   nameUnitResult
Densityg/cm2.10-2.40
Tensile strengthMPa15
Ulimate elongation%150
Operating temperaturey-180f+260


StandardsDNOD(mm)
ANSIDN15-DN600OD46～OD 716.5mm
CENDN15-DN600OD 46～OD695mm
JIS15A-600AOD 53～OD700mm
Other
OD5～OD1500mm


Standard Specifications

ANSI StandardsCEN StandardsJIS Standards
DN1546.5*22*3mmDN1046*18*3mm10A53*18*3mm
DN2056*27*3mmDN1551*22*3mm15A58*22*3mm
DN2565.5*34*3mmDN2061*27*3mm20A63*28*3mm
DN3275*43*3mmDN2571*34*3mm25A74*35*3mm
DN4084.5*49*3mmDN3282*43*3mm32A84*43*3mm
DN50104.5*61*3mmDN4092*49*3mm40A89*49*3mm
DN65123.5*77*3mmDN50107*61*3mm50A104*61*3mm
DN80136.5*89*3mmDN65127*77*3mm65A124*77*3mm
DN100174.5*115*3mmDN80142*89*3mm80A134*90*3mm
DN125196*140*3mmDN100162*115*3mm100A159*115*3mm
DN150221.5*169*3mmDN125192*141*3mm125A190*141*3mm
DN200278.5*220*3mmDN150218*169*3mm150A220*167*3mm
DN250338*273*3mmDN200273*220*3mm200A270*218*3mm
DN300408*324*3mmDN250328*273*3mm250A333*321*3mm
DN350449*356*3mmDN300378*325*3mm300A378*321*3mm
DN400513*407*3mmDN350438*377*3mm350A423*359*3mm
DN450548*458*3mmDN400489*426*3mm400A486*410*3mm
DN500605*508*3mmDN450539*480*3mm450A541*460*3mm
DN550659*559*3mmDN500594*530*3mm500A596*513*3mm
DN600716.5*610*3mmDN600695*630*3mm600A700*615*3mm
