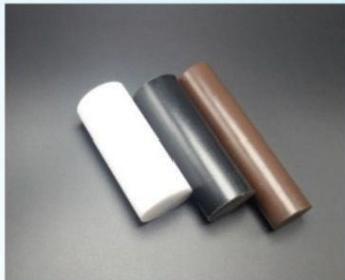

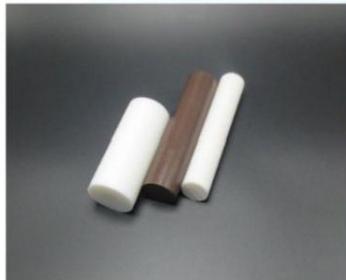

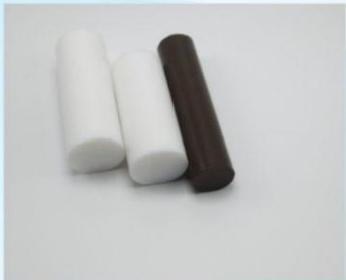

PTFE Rod

PTFE rod are made by mould or hydraulic pressing and sintering of PTFE suspension resin, or extruded from pre-sintering suspension resin. PTFE is called the King of Plastics. It's second to none in many properties. First, it is corrosion resistant and chemically inert; second, it is unaffected by virtually all acids and caustics and it functions properly under -180℃~+250℃; third, it has one of the lowest coefficients of friction against any solid; besides, it has the excellent characteristics of strong intensity, anti-corrosion, aging resistance, low cost, fire retardation etc. Therefore, PTFE is widely used in various fields as an indispensable material.

Inquire Now Next Product

Product Details:

Item name	Unit	Result
Density	g/cm³	2.10-2.40
Tensile strength	MPa	15
Ulimate elongation	%	150
Operating temperature	℃	-180～+260

Technology	Dia. (mm)	Length
Paste	1~5mm	50m,100m
Extruded	5mm~100mm	1000mm,2000mm
Extruded	110mm~250mm	1000mm
Molded	30mm~400mm	200mm,300mm
Filled Graphite	10mm~400mm	300mm,1000mm
Filled Bronze	30mm~400mm	200mm,300mm

Filled Fiber
Glass
30mm~400mm
100mm,300mm

Pure PTFE		Filled Graphite		Filled Fiber Glass		Filled 65%Bronze
Size	Kgs/pc	Size	Kgs/pc	Size	Kgs/pc	Size	Kgs/pc
5*1000mm	0.05
6*1000mm	0.07
8*1000mm	0.12
10*1000mm	0.18	10*1000mm	0.18
12*1000mm	0.26	12*1000mm	0.26
15*1000mm	0.41	15*1000mm	0.41
20*1000mm	0.72	20*1000mm	0.72
22*1000mm	0.87	22*1000mm	0.87
25*1000mm	1.13	25*1000mm	1.13
30*1000mm	1.63	30*1000mm	1.63	30*300mm	0.53	30*300mm	0.89
33*1000mm	1.97	33*1000mm	1.97	33x300mm	0.64	33x300mm	1.08
35*1000mm	2.21	35*1000mm	2.21	35x300mm	0.72	35x300mm	1.21
40*1000mm	2.89	40*1000mm	2.89	40x300mm	0.94	40x300mm	1.58
45*1000mm	3.66	45*1000mm	3.66	45x300mm	1.19	45x300mm	2
50*1000mm	4.52	50*1000mm	4.52	50x300mm	1.47	50x300mm	2.47
55*1000mm	5.46	55*1000mm	5.46	55x300mm	1.78	55x300mm	2.99
60*1000mm	6.5	60*1000mm	6.5	60x300mm	2.12	60x300mm	3.56
65*1000mm	7.63	65*1000mm	7.63	65x300mm	2.49	65x300mm	4.18
70*1000mm	8.85	70*1000mm	8.85	70x300mm	2.89	70x300mm	4.85
75*1000mm	10.16	75*1000mm	10.16	75x300mm	3.31	75x300mm	5.57
80*1000mm	11.56	80*1000mm	11.56	80x300mm	3.62	80x300mm	6.33
85*1000mm	13.05	85*1000mm	13.05	85×300mm	4.09	85x300mm	7.15
90*1000mm	14.63	90*1000mm	14.63	90x300mm	4.58	90x300mm	8.02
95*1000mm	16.3	95*1000mm	16.3	95x300mm	5.1	95x300mm	8.93
100*1000mm	18.06	100*1000mm	18.06	100x300mm	5.65	100x300mm	9.9
110*1000mm	21.86	110*1000mm	21.86	110x300mm	6.84	110x300mm	11.97
120*1000mm	26.01	120*1000mm	26.01	120x300mm	8.14	120x300mm	14.25
130*1000mm	30.53	130*300mm	9.16	130x300mm	9.56	130x300mm	16.72
140*1000mm	35.4	140*300mm	10.62	140x300mm	11.08	140x300mm	19.4
150*1000mm	40.64	150*300mm	12.19	150x300mm	12.72	150x300mm	22.27
160*1000mm	46.24	160*300mm	13.87	160*300mm	14.48	160*300mm	25.33
170x1000mm	52.2	170x300mm	15.66	170x300mm	16.34	170x300mm	28.6
180*1000mm	58.53	180*300mm	17.56	180*300mm	18.32	180*300mm	32.06
200*1000mm	72.25	200*300mm	21.68	200*300mm	22.62	200*300mm	39.58
220*300mm	27.37	220*300mm	27.37	220*300mm	27.37	220*300mm	47.9
230*300mm	29.91	230*300mm	29.91	230*300mm	29.91	230*300mm	52.35
250*300mm	35.34	250*300mm	35.34	250*300mm	35.34	250*300mm	61.85
260*300mm	38.23	260*300mm	38.23	260*300mm	38.23	260*300mm	66.9
280*300mm	44.33	280*300mm	44.33	280*300mm	44.33	280*300mm	77.58
300*300mm	50.89	300*300mm	50.89	300*300mm	50.89	300*300mm	89.06
320*300mm	57.9	320*300mm	57.9	320*300mm	57.9	320*300mm	101.33
350*300mm	69.27	350*300mm	69.27	350*300mm	69.27	350*300mm	121.22
360*300mm	73.28	360*300mm	73.28	360*300mm	73.28	360*300mm	128.25

Remark

Tolerance is accordingto Diameter and Length:-0 to+5%

2.lt is theoretical value for above spec with the 1000mm,Taking objective as standard.listed data are for reference only

3.in stock products dimension:300mm, 1000mm,2000mm,other need customize.

4.The products above have been strictly treatedwith tempenng,the strain value has metthe minimum
