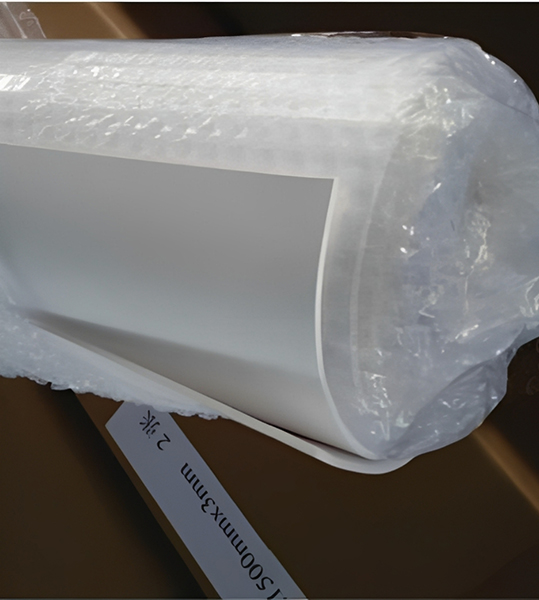

Expanded PTFE Sheet

Expanded PTFE Sheet made from biaxial oriented expanded PTFE sheeting that is laminated to the required thickness.Expanded 100%virgin PTFE using a proprietary process that products a uniform and highly frbrillated microstructure with equal tensile strength in all directions.

Size:1500mm×1500mmx0.3mm～12mm

Inquire Now Next Product

Product Details:

Thickness	Sheet Sizes		Weight
	Inch	mm	Ibs	kg
1/32"	60"x 60"	1524 x 1524	3.3	1.5
1/16"	60”×60”	1524 x1524	6.2	2.8
3/32"	60"×60"	1524 x 1524	10.2	4.6
1/8"	60“x 60”	1524 x1524	12.3	5.6
3/16"	60”x60”	1524 x1524	20.5	9.3
1/4"	60”x 60"	1524 x1524	24.7	11.2
0.3mm	60”x60"	1524 x 1524	1.25	0.57
0.5mm	60"×60"	1524 ×1524	2.11	0.96
0.6mm	60”x 60"	1524 ×1524	2.53	1.15
0.8mm	60”x60"	1524 x1524	3.37	1.53
1.0mm	60“x 60”	1524 x1524	4.20	1.91
1.5mm	60“x 60”	1524 x1524	6.31	2.87
2.0mm	60”x60”	1524 x1524	8.43	3.83
2.5mm	60”x 60”	1524 ×1524	10.52	4.78
3.0mm	60“×60”	1524 ×1524	12.63	5.74
4.0mm	60”x 60"	1524 ×1524	16.83	7.65
5.0mm	60”×60"	1524 ×1524	21.03	9.56
6.0mm	60”×60"	1524 ×1524	25.26	11.48
8.0mm	60”×60"	1524 x1524	33.66	15.3
10mm	60”×60"	1524 ×1524	42.09	19.13
12mm	60”×60”	1524 x1524	50.49	22.95

Remark:

1.Tolerance is according to Thickness,Length and Width:-0 to+3%

2.It is theoretical value for above spec with the 1524×1524mm,Taking objective as standard,listed data are for

reference only

3.In stock products dimension:1500x1500mm,other need customize.eg:1500×3000mm

4.The products above have been strictly treated with tempering,the strain value has met the minimum.
