‌HDPE Rod

HDPE(high-density polyethylene)(AS EXTRUDED)offers excellent impact resistance,light weight,low

moisture absorption,and high tensile strength.HDPE is also non-toxic and non-staining and meets FDA.

Excellent chemical resistance;Good Fatigue &Wear Resistance;Resists organic solvents,degreasing

agents&electrolytic attack;Great cutting board material.

Inquire Now Next Product

Product Details:

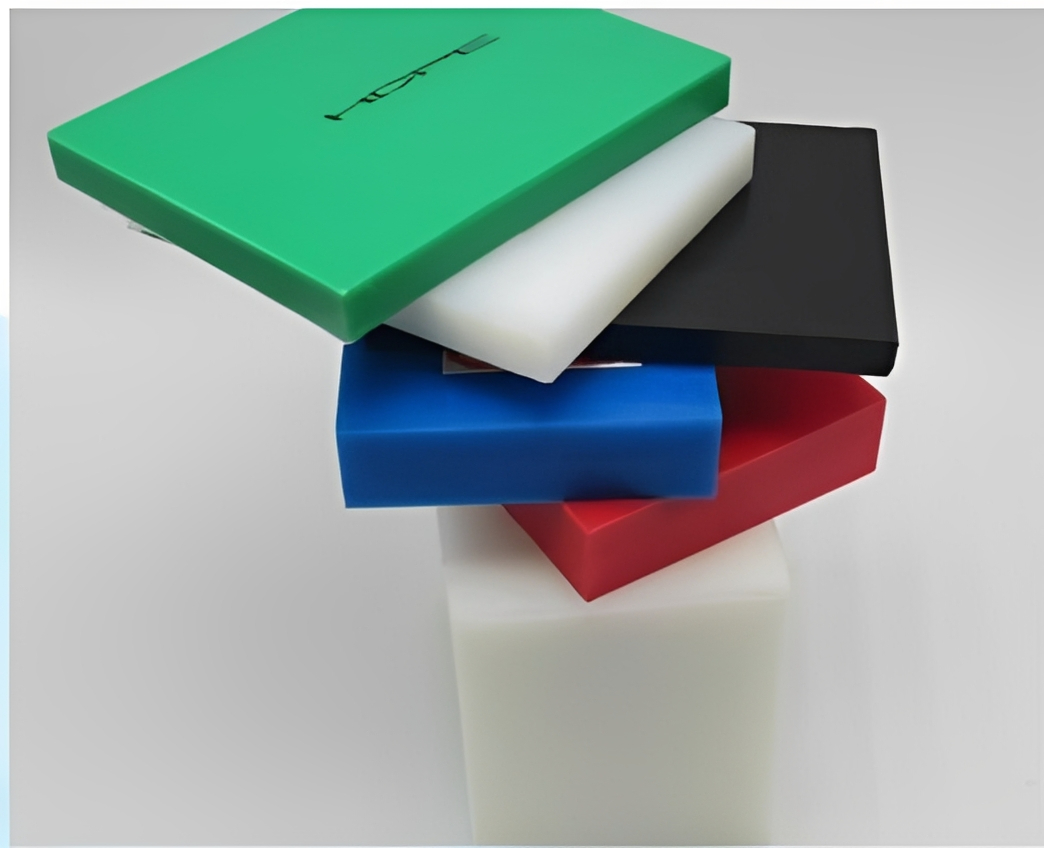

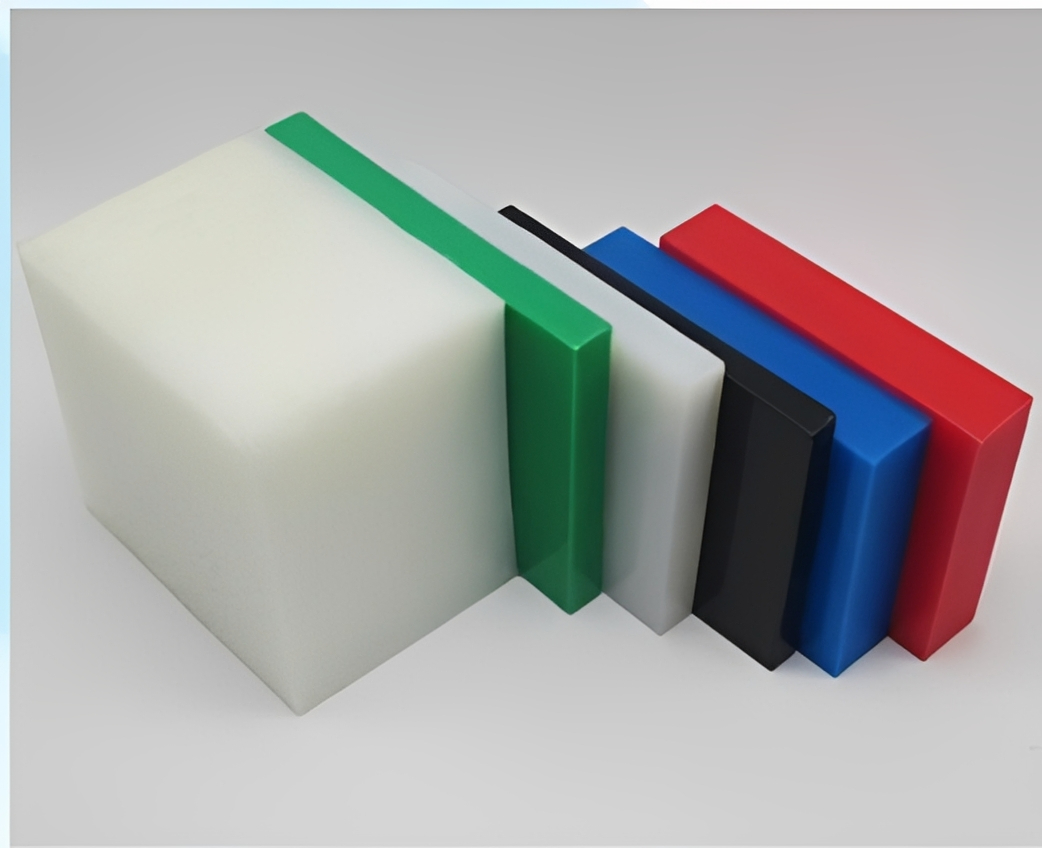

HDPE Sheet specifications:

(1-200mm)1000*2000mm

(1-100mm)1200*2440mm

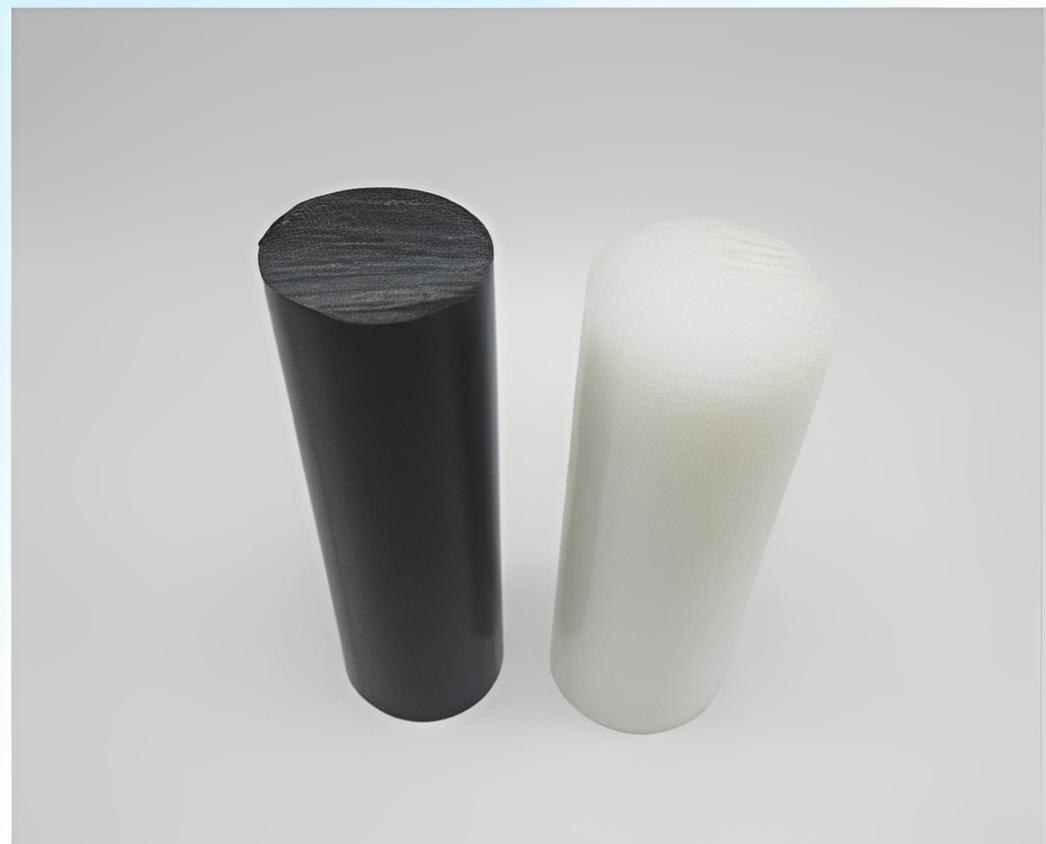

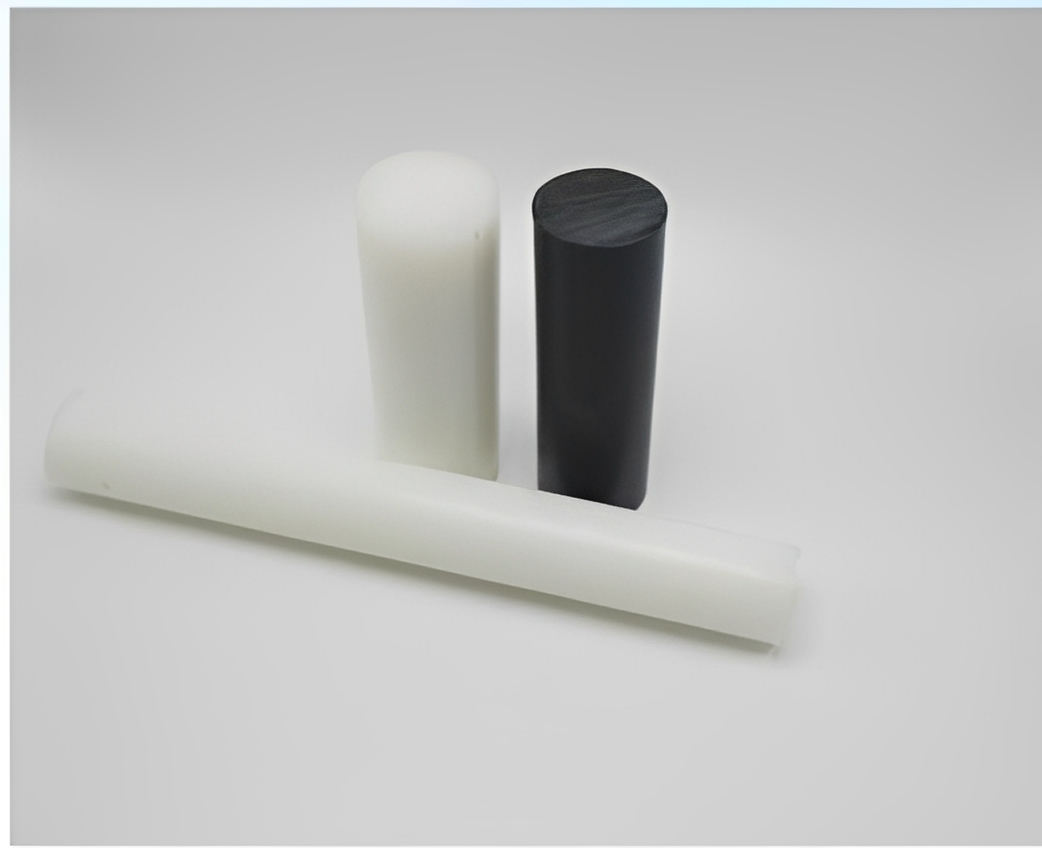

HDPE Rod Specifications:

φ(10-300mm)1000mm/2000mm

HDPE Rod
Dia. (mm)	L. (mm)	Kgs/pc
10	1000	0.08
15	1000	0.19
20	1000	0.33
25	1000	0.52
30	1000	0.74
35	1000	1.01
40	1000	1.32
45	1000	1.67
50	1000	2.06
55	1000	2.49
60	1000	2.97
65	1000	3.48
70	1000	4.04
75	1000	4.64
80	1000	5.28
85	1000	5.96
90	1000	6.68
100	1000	8.25
110	1000	9.98
120	1000	11.87
130	1000	13.94
140	1000	16.16
150	1000	18.55
160	1000	21.11
180	1000	26.72
200	1000	32.99

Remark:

1.Tolerance is according to Thickness,Length and Width:0 to+5%

2.It is theoretcal value for above spec with the 1000x2000mm or 1000mm,Taking objective as standard,listed data are for reference on 3.In stock products dimension:1000×2000mm,1200×2400mm;1000mm,2000mm:other need customize.

4.The products above have been strictly treated with tempering,the strain value has met the minimum.

ITEM

METHOD

UNIT

VALUE

Specific gravity	ASTM D792	g/cm3	0.96
Tensile yield strength	ASTM D638	Mpa	30
Breaking elongation	ASTM D638	%	500
Bending strength	ASTM 790	Mpa	35
Flexural modulus	ASTM 790	Mpa	1370
Shore hardness	ASTM D2240	D	75
Impact strength	ASTM D256	J/M	80
Thermal Properties
Melting point	DSC	℃	120
Heat distortion temperature	ASTM D648	℃	80
Operating temperature		℃	90
Maximum operating temperature	-	℃	110
Coefficient of linear thermal	ASTM D696	10-5-1/K	15.5
expansion Electrical Properties
Dielectric strength	ASTM D150	KV mm	2.4
Volume resistivity	ASTM D257	Q.cm	101⁴
Surface resistivity	ASTM D257	Ω	1016
Chemical Properties
Water absorption	23℃ 60%RH	%	0.01
Acid resistance	23℃ 60%RH		+
Alkali resistance			+
Acid and alkali resistance			+
Resistance to sodium chlorate			+
Resistance to aromatic compounds			+
Resistance to ketone	23℃ 60%RH		+
Resistance to hot water	23℃ 60%RH		+
Others
Flammability UL 94			HB
Viscosity			0
Non toxic EEC 90/128 FDA			+
Coefficient of friction DIN 53375			0.3
Anti -ultraviolet			0

Remarks:

1.“+”:positive“-”negative “0”:depends.

2.All Autai the parameters above are based on raw material but not finished products,
